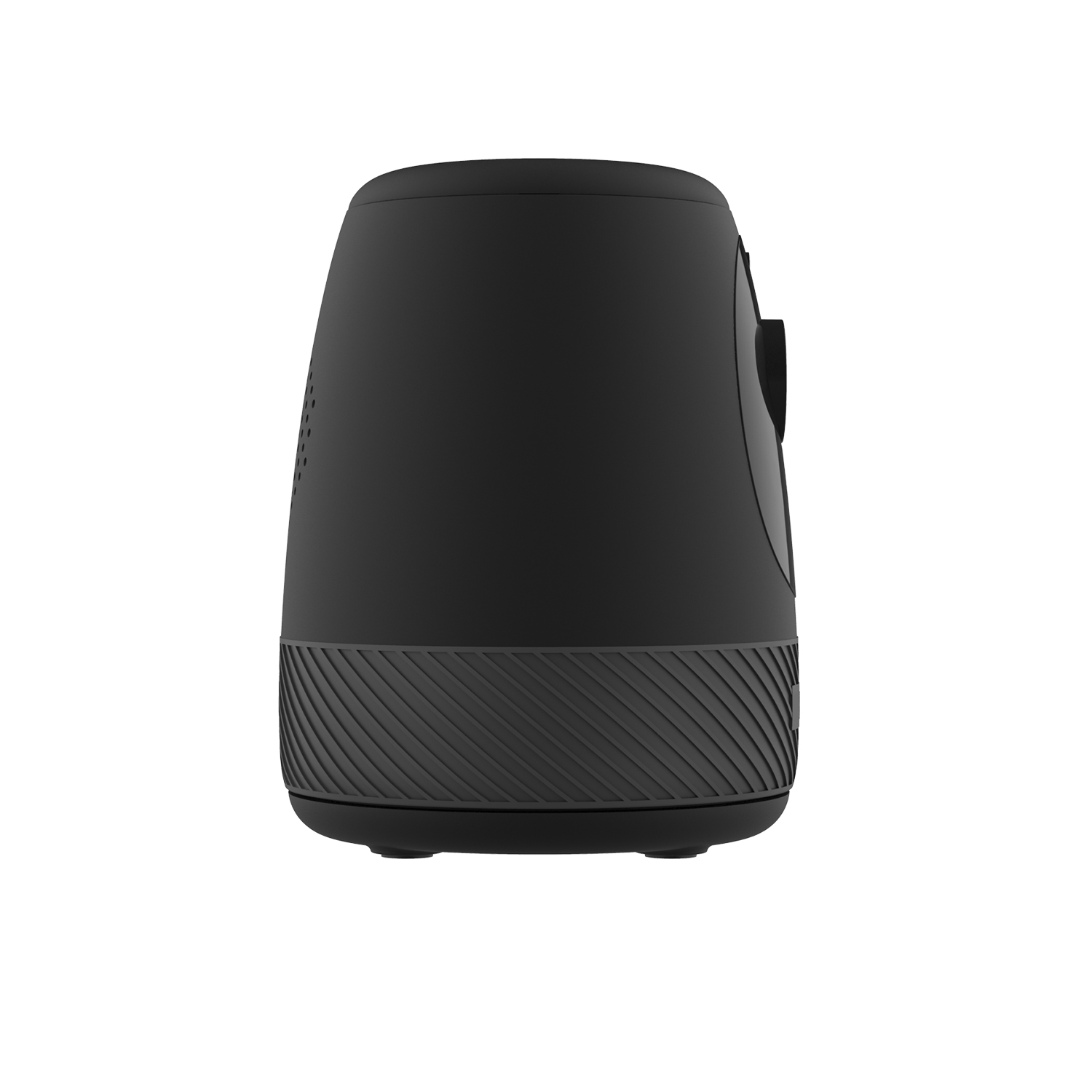

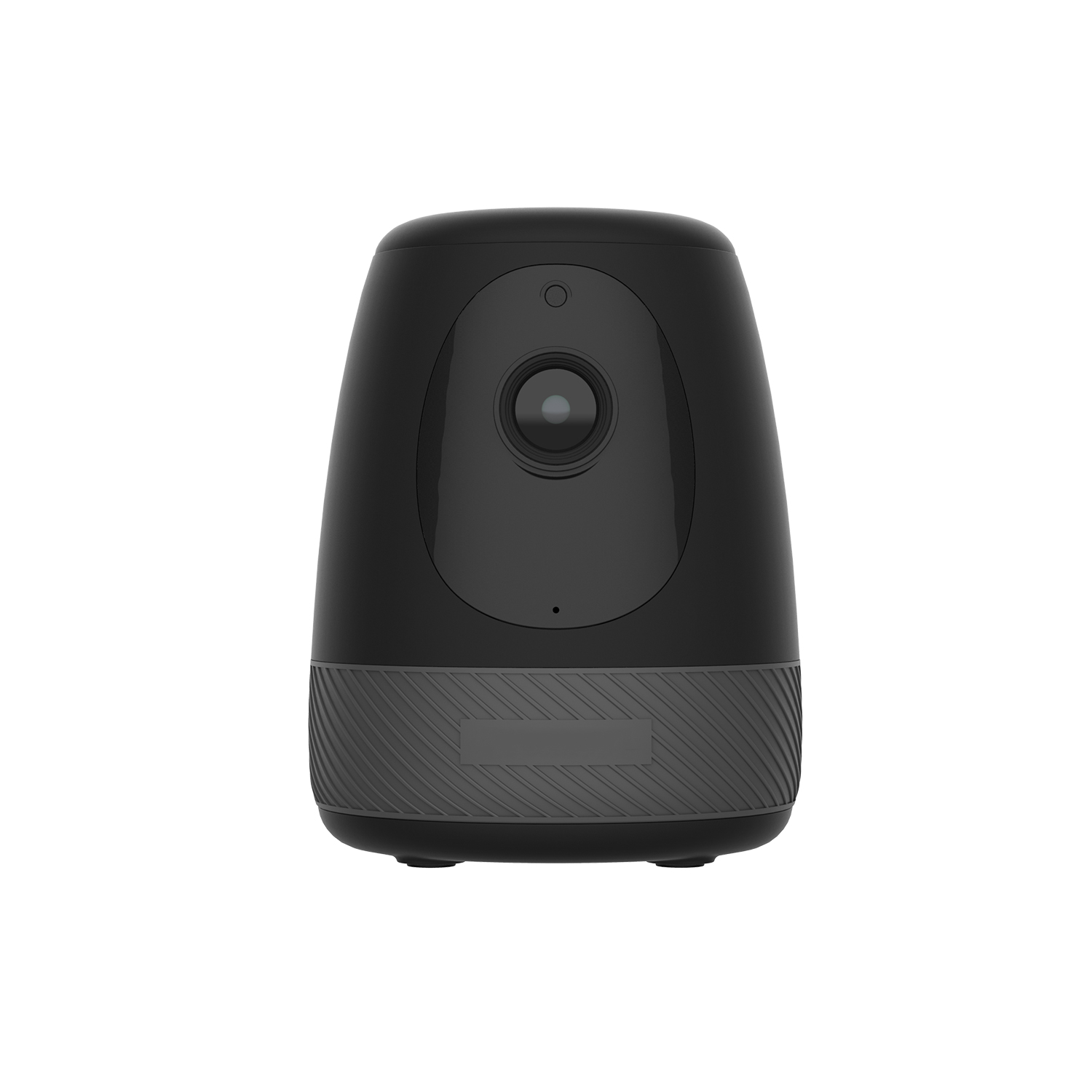

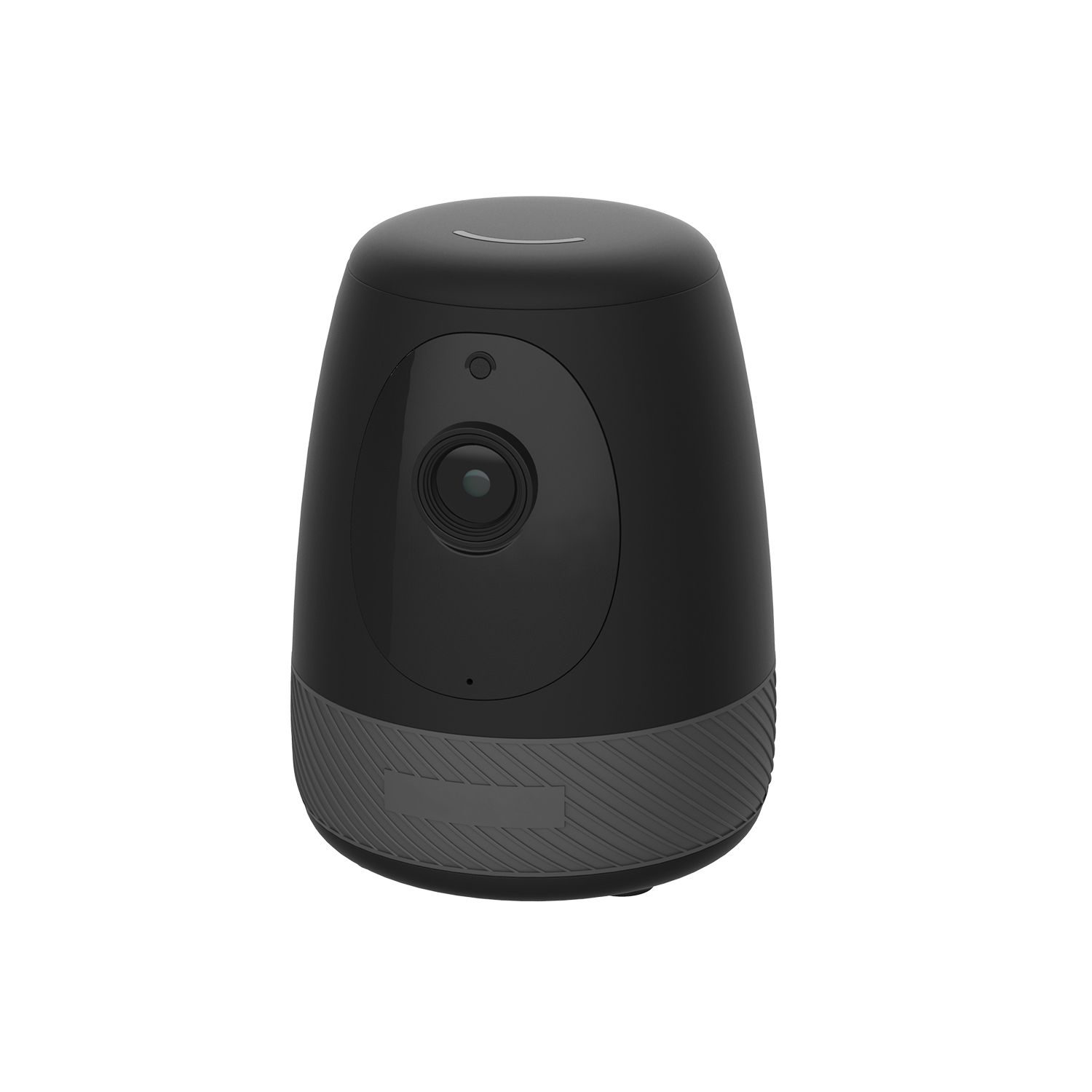

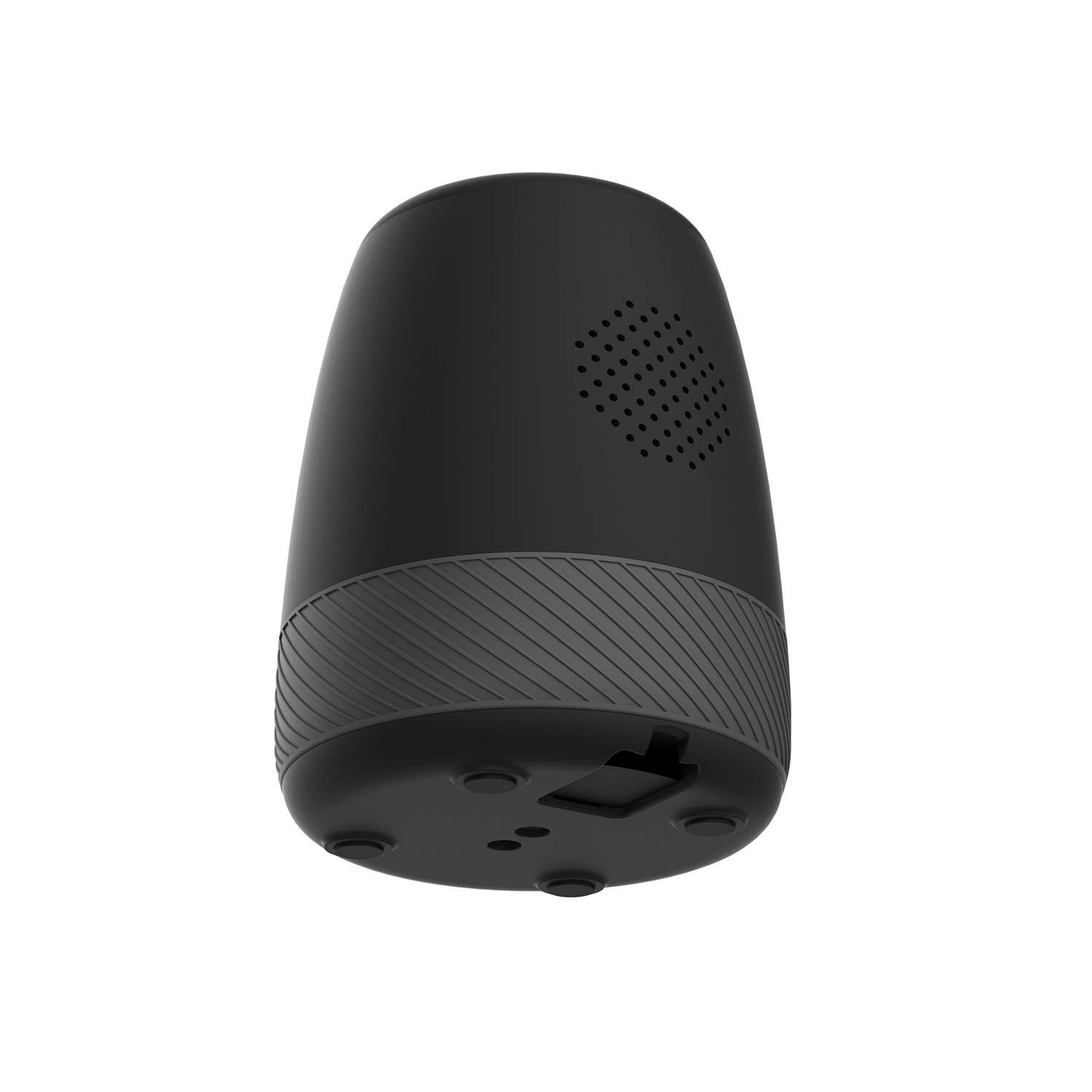

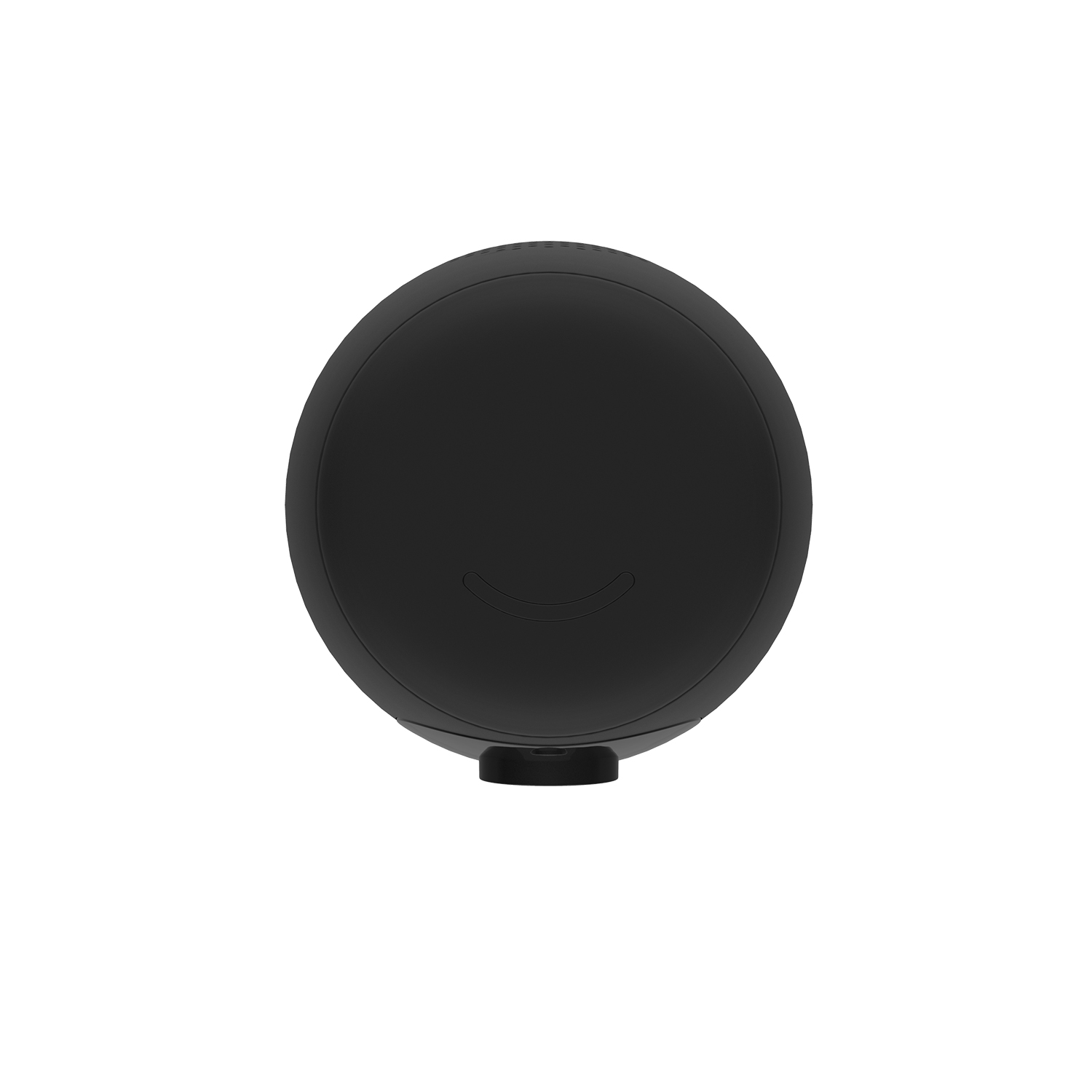

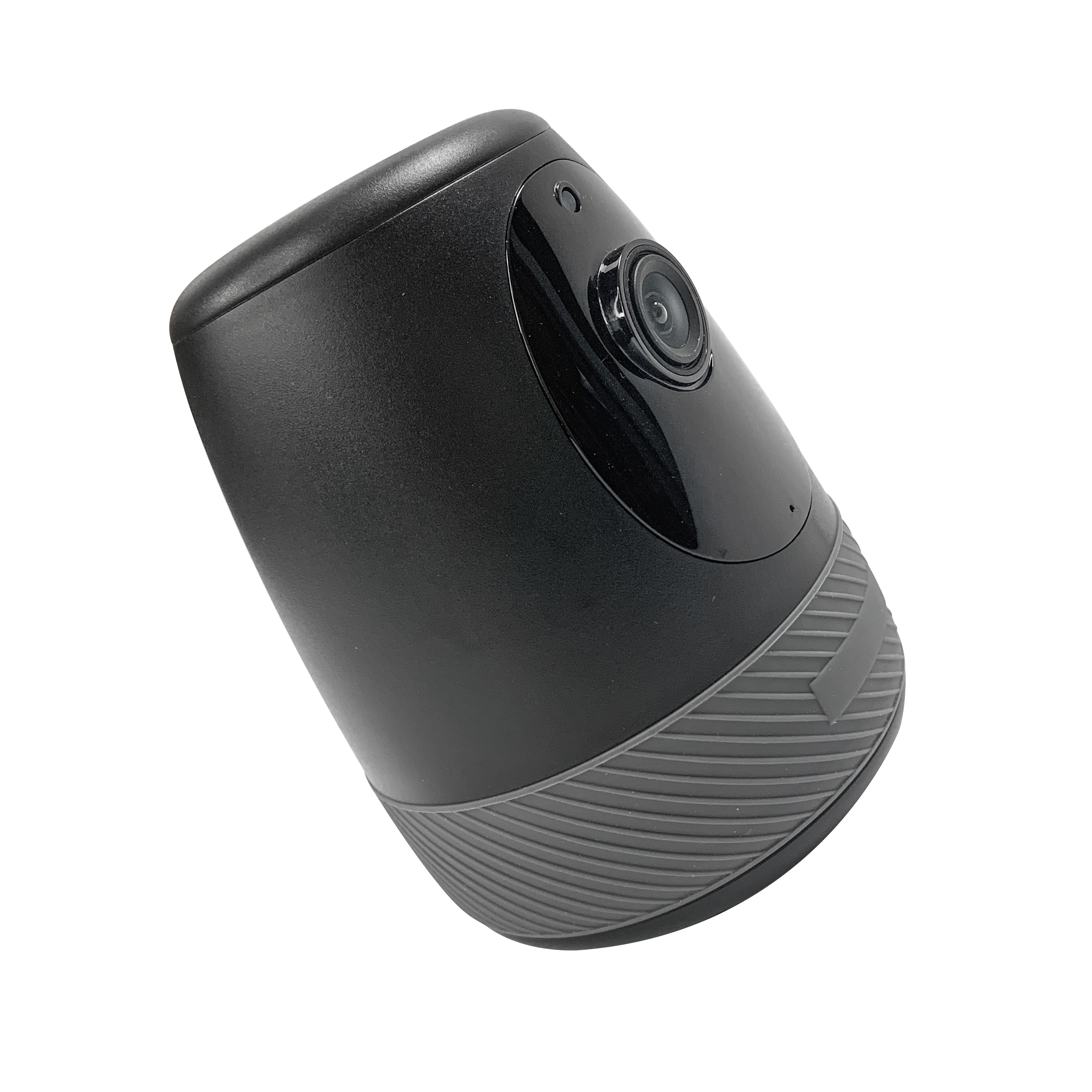

| XL-G(With built-in HUB/Gateway) |
| Image Sensor | Sensor Type | JX-F23A 1/2.9” 2MP Still image resolution |
| Display Resolution | 2.0Mega Pixels (1920*1080) |
| Frame Rate | 15fps |
| Lens | Lens Type | f:3.3mm, F:2.3 |
| Angle of View | Diagonal: 108°, Horizontal: 87°, Vertical:52° |
| Video | Image Compression | H.264 |
| Resolution | 1080P(1920x1080)+360P(640x360) |
| Stream | 2 stream（1080P/360p ） |
| Image Adjustment | The brightness, contrast, saturation, sharpness are adjustable |
| Rotatory angle | 360° (pan only) |
| Night Vision | 4pcs IR-LEDs, night vision range up to 8 meters |
| Audio | 2-Way | Half-duplex 2-way audio |
| Audio Format | G711 |
| MIC | -42±3dB |
| Siren | 100dB alarm |
| Speaker | 8Ω 1W |
| Network | Wireless Standard | 802.11 b/g/n 2.4GHz (Does not support 5GHz network) |
| Wireless Security | WPA, WPA2 |
| Wireless Setup | QR code setup |
| Gateway | Sub-1G Frequency | 915MHz / 868MHz / 433MHz（Customizable） |
| Sub-1G connectivity | Supports more than 30pcs sub-devices |
| Storage | Local Storage | Supports max.128GB microSD cards |
| Cloud Storage | Available by acxeon |
| Alert | Motion detection Alert | Notification pushing, Photo snapshot / Video record |
| Compatibility | Alexa/Google | Compatible with Alexa/Google (Customization) |
| Power Supply | Power Adapter | 5V±10%, 2.0A |
| Power cable | USB type, 6 feet (1.5m) |
| Power Consumption | Max. 10W |
| Physical | Color | Black |
| Matery | ABS+RUBBER |
| Dimension(mm) | 77(L) x77(W) x 100(H) |
| Net Weight | 230g |
| Environment | Operating Temperature | -10°C~55° C (-4°F ~ 122°F) |
| Operating Humidity | 20% ~ 85% non-condensing |
| Others | Update | OTA background update |
| Reset | Reset button is available |
| Indicator ligh | 2 Bi-colour LED, blue and red |
| Operating Systems | Android 4.3 and IOS 8 or higher |
| Mounting | Tabletop placement, Wall-mount |
| Ports | 1 micro USB |
| Package(KIT) | In The Box | XL-G*1 |
| Door sensor *2 |
| Motion sensor *1 |
| Power adapter *1 |
| USB cable *1 |
| User manual *1 |
| Dimension(mm) | 255(L)x145(W)x100(H) |
| Weight | 590g |
| Certification |
| CE, FCC, RoHS |

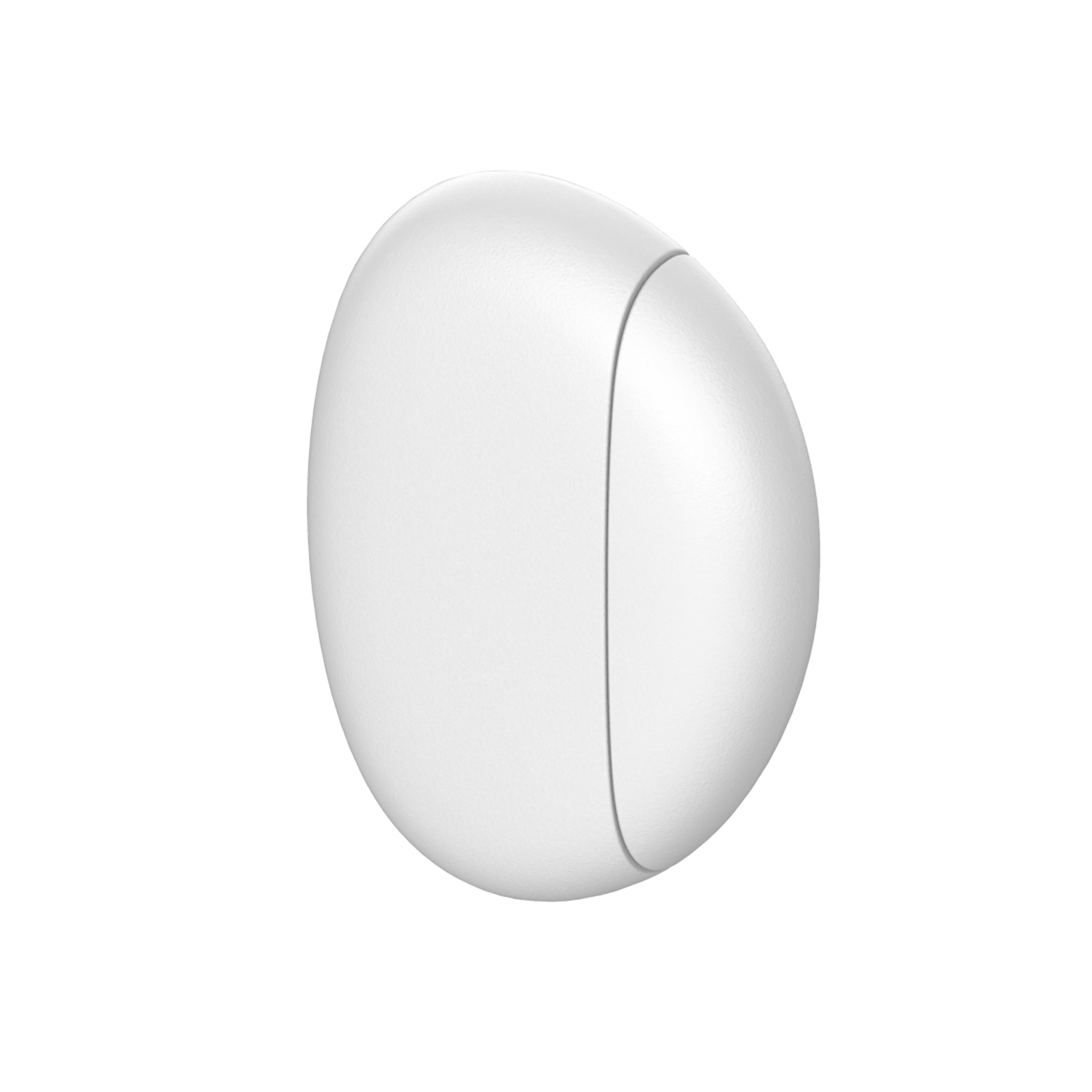

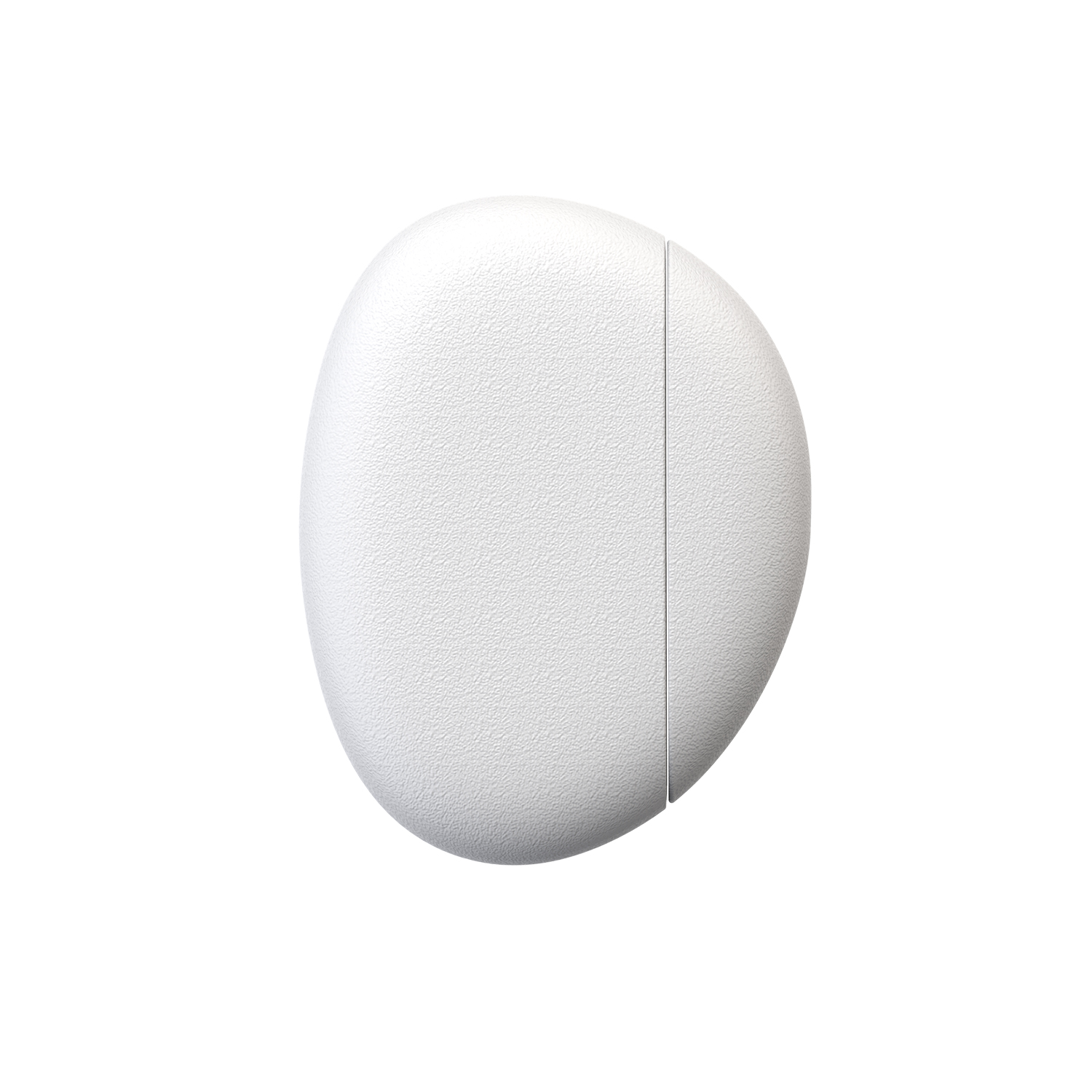

| Door & Window Sensor |
| Size and Color | Dimensions | 59.9 x 45.6 x 12.2mm |
| Available Colors | White |
| Power and Conectivity | Battery Type | 3V Lithium Battery Included, CR2032 *1 |
| Battery Life | At least 2 years @20 times per day |
| Connectivity | 50 meter from XL(Gateway) (in open area) |
| Installation | Mounting | On door or window frame, with 3M double-sided self-adhesive tape |
| Operating conditions | -10°C~55° C (14°F ~ 122°F) |
| Setup Requirements | Setup through XL |
| Warranty | 1-year limited warranty |
| Works with XL-G | When someone open door or window with sensor, the built-in siren will be triggered. |

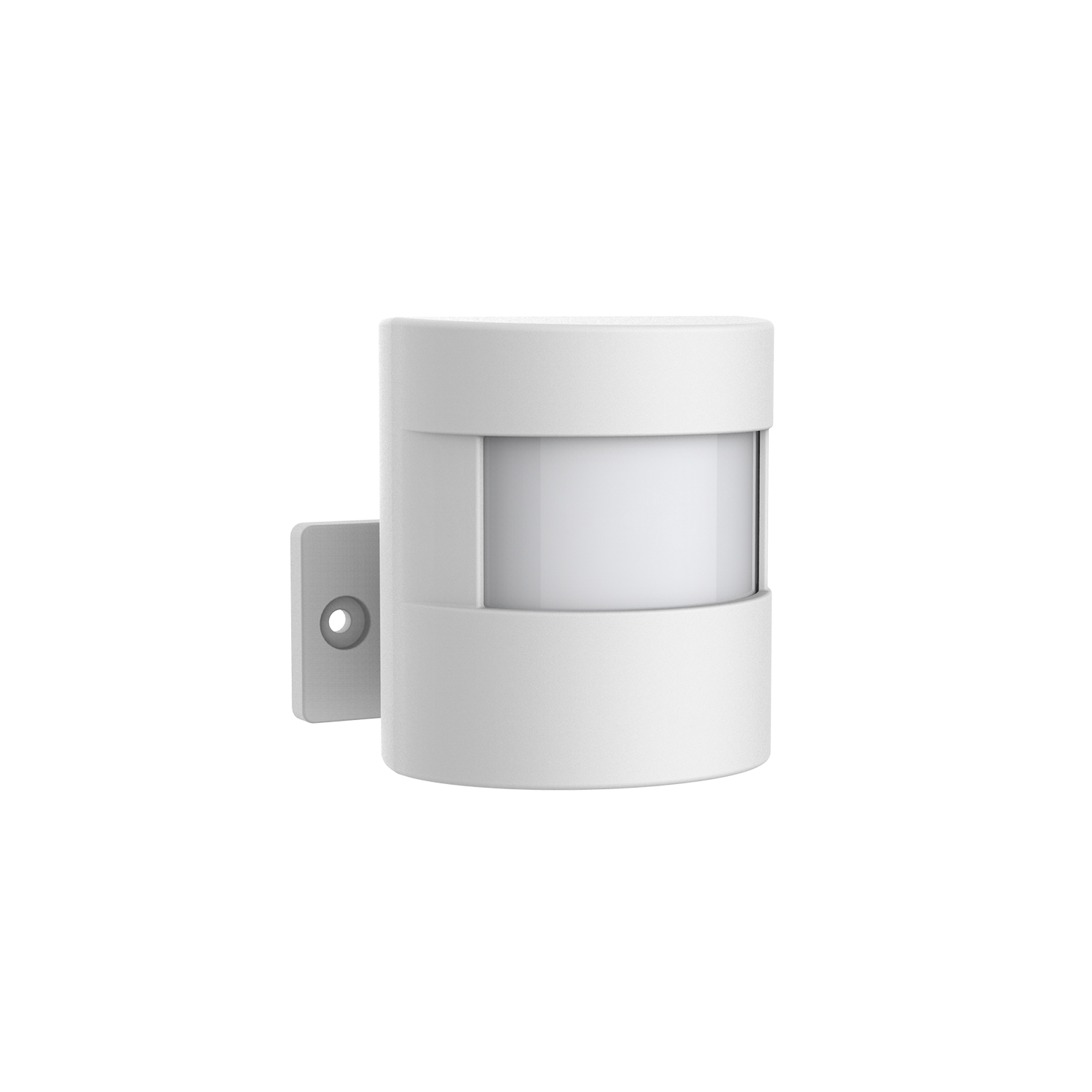

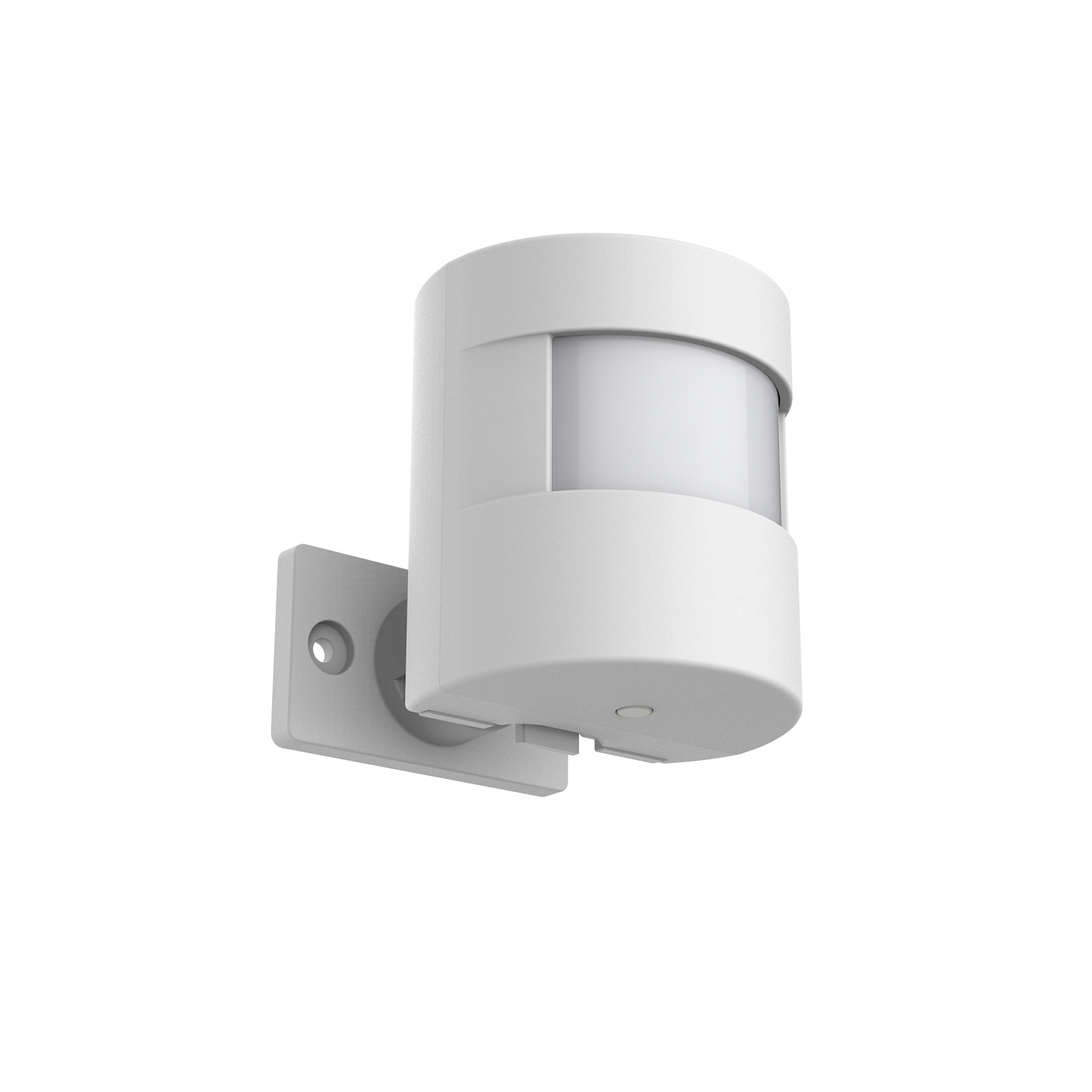

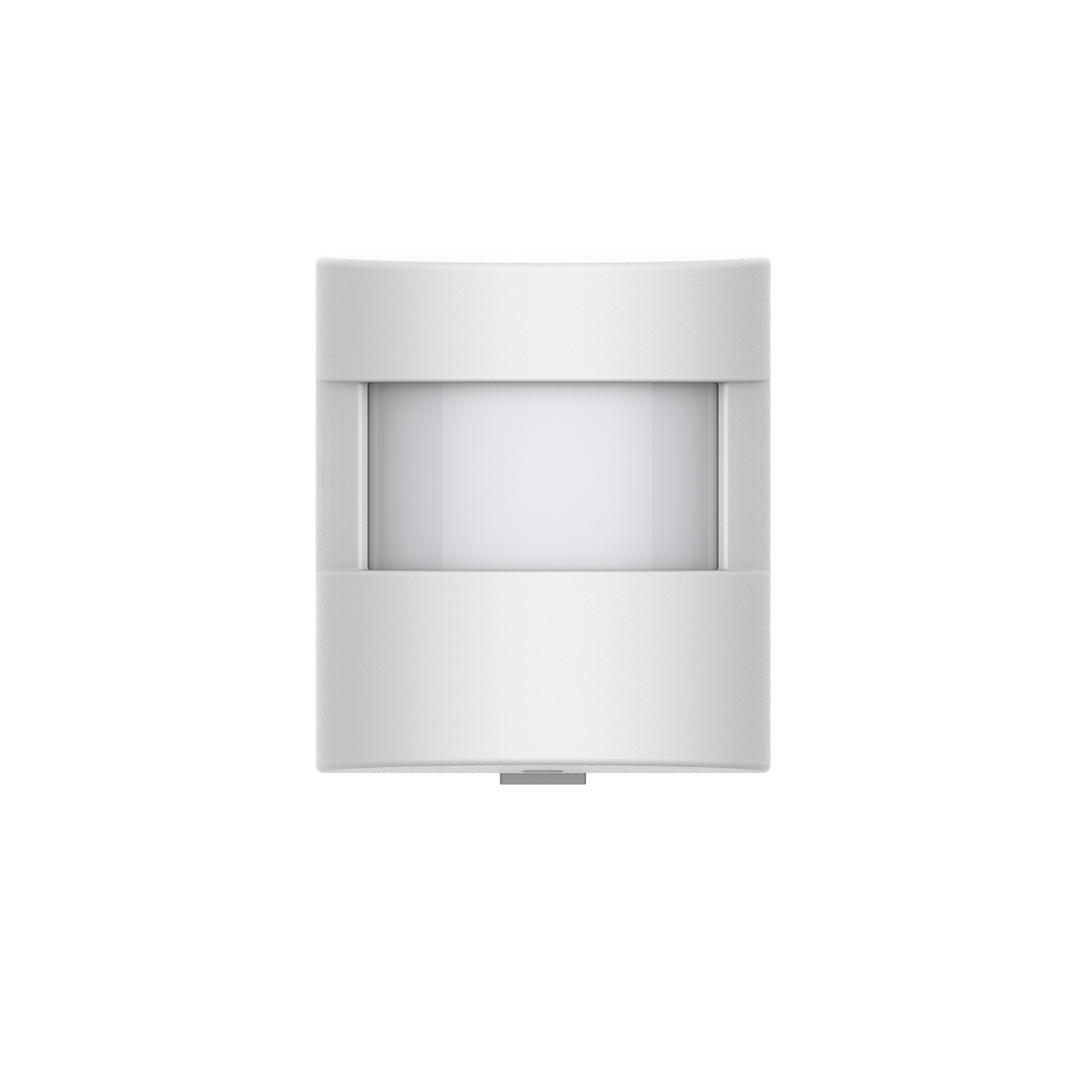

| Motion Sensor |
| Size and Color | Dimensions | 54.5 x 44 x 62mm |
| Available Colors | White |
| Power and Conectivity | Battery Type | 4.5V, AAA batteries *3 |
| Battery Life | At least 1 years @100 times per day |
| Connectivity | 50 meter from XL(Gateway) (in open area) |
| Installation | Mounting | Mount on the wall or corner of entrance, hallway etc. |
| Detection Range | The detection angle max. 110°. |
| The maximum detection distance 12m. |
| Operating conditions | -10°C~55° C (14°F ~ 122°F) |
| Setup Requirements | Setup through XL |
| Warranty | 1-year limited warranty |
| Works with XL | When the motion sensor detects intruder, the built-in siren will be triggered. |
