TürkçeSuper Dc Series Ev Fast Charge

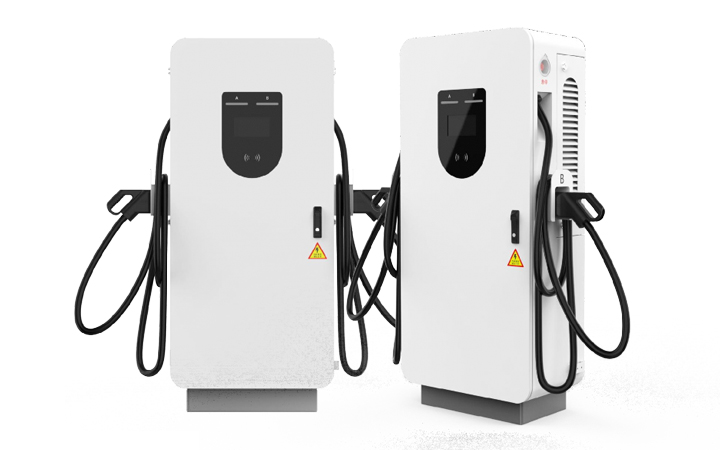

60kW/8OkW floor-stand DC charger
Optional networking mode: support wifi/Ethmet/3G/4G/Bluetooth/OCPP 1.6 json control device
The output current has four gears for more flexible adjustment
Various protection functions ensure charging safety in rainy and snowy weather
Friendly interface and comfo rtable LCD screen
High compatibility, applicable to almost all models on the market
Energy-saving and power-saving，standby power consumption is as low as 3w, and cost is reduced
Optional installation mode:wall一mounted/pole一mounted,more convenient
Various charging methods:plug&play/RFID card/APP
A4 paper size, saving space
| Datasheet | Model No. | EDCL060A/EDCL060B |
| Input | Power Supply | 3P+N+PE |
| Voltage Range | 400VAC±20% | |
| Frequency | 50/60Hz | |
| Output | Output Voltage | 200-1000V DC |
| Maximum Current | 200A | |
| Rated Power | 60kW | |
| User Interface | Charge Connector | CCS 2cable |
| Cable Length | 5M | |
| Enclosure | Galvanized steel | |
| LED Indicator | Green/Yellow/Red | |
| LCD Display | 7'' color touch screen | |
| RFID Reader | Mifare ISO/IEC 14443 A | |
| Start Mode | Plug&Play/RFID card/App | |
| Emergency Stop | Yes | |
| Interface Language | English/Chinese | |
| Auxiliary Power | 12Vdc | |
| Communica | WIFI | Optional |
| tio n | Ethernet | Yes |
| 3G/4G | Yes | |
| OCPP | OCPP 1.6 Json (OCPP 2.0 optional) | |
| Electrical Paramet er | Ef ficiency | ≥95% |
| Power Factor | ≥0.99 @ 50%~100% loading | |
| THD | ≤5% @ 50%~100%loading | |
| Ripple Factor | ≤±0.5% | |
| Safety | RCD | Type A |
| Ingress Protection | IP54 | |
| Impact Protection | IK08 | |
| Certification | CE | |
| Certificate | EN/IEC 61851-1: 2017, EN/IEC 61851-23: 2014 | |
| Compliance | Over current protection, Residual current protection, Short circuit protection, Ground protection, Surge protection, Over/Under voltage protection, Over/Under frequency protection, Over/Under temperature protection | |
| Special Protection | ||
| Warranty | 2 years | |
| Environment | Installation | Floor-stand |
| Cooling Method | Fan cooling | |
| Noise | ≤60dB | |
| Work Temperature | -30℃ to +55℃ | |
| Work Humidity | 5%~95% | |
| Work Altitude | <2000m | |
| Package | Product Dimensions | 700*400*1600(L*W*H)mm |
| Package Dimensions | 800*500*1700(L*W*H)mm | |
| Net Weight | 200Kg | |
| Gross Weight | 230Kg |

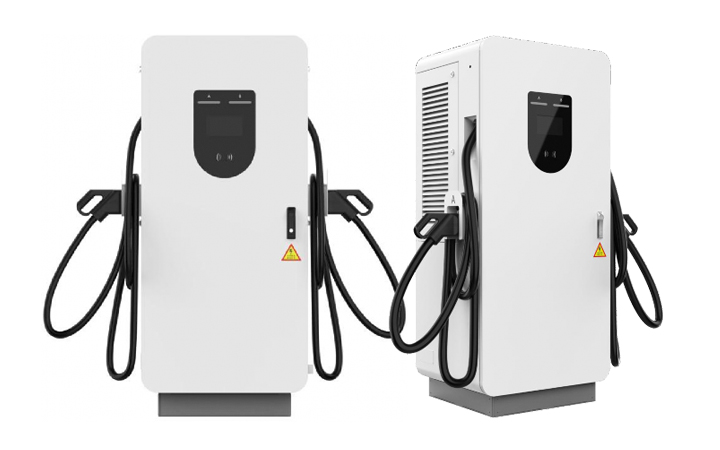

120kW/18OkW floor-stand DC charger
Optional networking mode: support wifi/Ethmet/3G/4G/Bluetooth/OCPP 1.6 json control device
The output current has four gears for more flexible adjustment
Various protection functions ensure charging safety in rainy and snowy weather
Friendly interface and comfo rtable LCD screen
High compatibility, applicable to almost all models on the market
Energy-saving and power-saving，standby power consumption is as low as 3w, and cost is reduced
Optional installation mode:wall一mounted/pole一mounted,more convenient
Various charging methods:plug&play/RFID card/APP
A4 paper size, saving space
| Datasheet | Model No. | EDCL120A/EDCL120B | EDCL0180A/EDCL0180B |
| Input | Power Supply | 3P+N+PE | 3P+N+PE |
| Voltage Range | 400VAC±20% | 400VAC±20% | |
| Frequency | 50/60Hz | 50/60Hz | |
| Output | Output Voltage | 200-1000V DC | 200-1000V DC |
| Maximum Current | 250A | 250A | |
| Rated Power | 120kW | 180kW | |
| User Interface | Charge Connector | CCS 2 cable | |
| Cable Length | 5M | ||
| Enclosure | Galvanized steel | ||
| LED Indicator | Green/Yellow/Red | ||
| LCD Display | 7'' color touch screen | ||
| RFID Reader | Mifare ISO/IEC 14443 A | ||
| Start Mode | Plug&Play/RFID card/App | ||
| Emergency Stop | Yes | ||
| Interface Language | English/Chinese | ||
| Auxiliary Power | 12Vdc | ||
| Communication | WIFI | Optional | |
| Ethernet | Yes | ||
| 3G/4G | Yes | ||
| OCPP | OCPP 1.6 Json (OCPP 2.0 optional) | ||
| Electrical Parameter | Ef ficiency | ≥95% | |
| Power Factor | ≥0.99 @ 50%~100% loading | ||
| THD | ≤5% @ 50%~100% loading | ||
| Ripple Factor | ≤±0.5% | ||
| Safety | RCD | Type A | |
| Ingress Protection | IP54 | ||
| Impact Protection | IK08 | ||
| Certification | CE | ||
| Certificate Compliance | EN/IEC 61851-1: 2017, EN/IEC 61851-23: 2014 | ||
| Special Protection | Over current protection, Residual current protection, Short circuit protection, Ground protection, Surge protection, Over/Under voltage protection, Over/Under frequency protection, Over/Under temperature protection | ||
| Warranty | 2 years | ||
| Environment | Installation | Floor-stand | |
| Cooling Method | Fan cooling | ||
| Noise | ≤60dB | ||
| Work Temperature | -30℃ to +55℃ | ||
| Work Humidity | 5%~95% | ||
| Work Altitude | <2000m | ||
| Package | Product Dimensions | 750*600*1700(L*W*H)mm | |
| Package Dimensions | 850*700*1800(L*W*H)mm | ||
| Net Weight | 260Kg | 300Kg | |
| Gross Weight | 300Kg | 360Kg | |
