Portable Charger

Short Description:

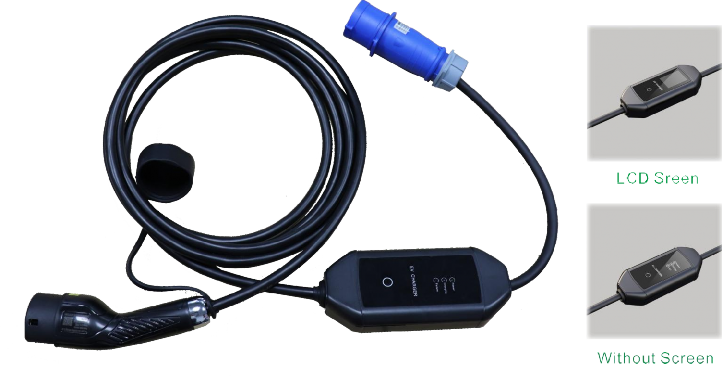

3.5kW/7kW portable AC charger


Product Detail

Schuko Plug

NEMA6-20P Plug

Blue cee


    Small size, convenient to carry, and can be charged anytime andanywhere

    lThe output current has fourgears for more flexible adjustment

    High compatibility, applicable to almost all models on the market

    lVarious protec on func ons ensure charging safety in rainy and snowy weather

    Friendly interface and comfo rtable LCD screen


DatasheetModel   No.EACX0035A-Y1EACB007A-Y1
InputPower   Supply1P+N+PE
Voltage Range230VAC
Frequency50/60Hz
Current0-16A0-32A
OutputVoltage   Range230VAC
Frequency50/60Hz
Current8A-10A-13A-16A8A-16A-20A-32A
User   InterfaceCharge   ConnectorType   2 cable
Cable Length5M
Charge Connector CompatibilityEN   62196-1:2014,EN 62196-2:2017
EnclosurePlastic   PC
LED IndicatorGreen/Blue/Rednone
LCD Display2.8″   color touch screennone
RFID ReaderMifare   ISO/IEC 14443 A
Start ModePlug&Play
Interface LanguageEnglish/Chinese
SafetyIngress   ProtectionIP55
Impact ProtectionIK10
CertificationCE
CoolingNatural   cooling
Certificate ComplianceCE/EN/IEC   61851-1:2017,EN/IEC 61851-21-2:2018
Special ProtectionOver   current protection,Residual current protection,Ground protection,Surge   protection,
Over/Under voltage   protection,Over/Under frequency protection,Over/Under temperature protection
Warranty2   years
EnvironmentWork   Temperature-25℃   to +55℃
Work Humidity5%~95%
Work Altitude<2000m
PackageProduct   Dimensions(L*W*H)mm
Package Dimensions(L*W*H)mm
Net Weight5Kg6Kg
Gross Weight6Kg7Kg
